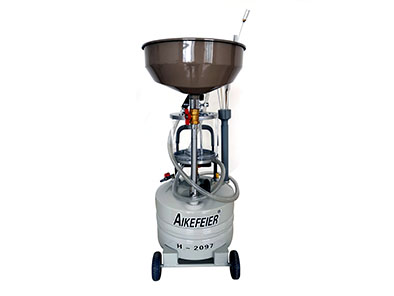

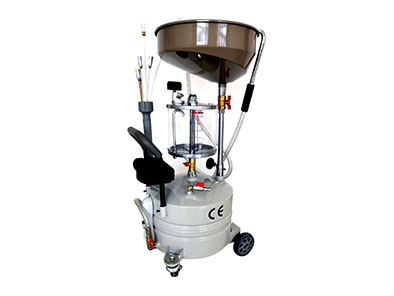

H-2097

Air Pressure

7-9bar

Oil Discharge Pressure

0.6-0.8bar

Gas Consumption

150L/Min

Vacuum Degree

0-1bar

Oil Tank Capacity

40L

Tank Diameter

400mm

Tank Height

400mm

Measuring Cup volume

6L

Tray Volume

20L

Tray Diameter

400mm

Tray Height Adjustment

890-1000mm

Oil Temperature

40-60°

Sucker Needle

6pcs

Φ5×L750mm,(Cu,1PC)

Collecting Speed：1.9L/Min

Φ6×L750mm,(Cu,1PC)

Collecting Speed：3.2L/Min

Φ6×L750mm,(PVC,1PC)

Collecting Speed：4.2L/Min

Φ6×L1000mm,(PVC,1PC)

Collecting Speed：3.5L/Min

Φ5×L750mm,(PVC,1PC)

Collecting Speed：2.1L/Min

Φ8×L900mm,(PVC,1PC)

Collecting Speed：5.1L/Min

Suction Pipe Length

1.4m

Drain Pipe Length

1.5m

ToolBox

170mm×120mm

Fixed Wheel

Φ120×30mm

Drive Wheel

Φ75mm

Wheel Track

400mm

Applicable Medium

engine oil（Do not absorb liquids other than oil）

Packaging

Measuring cup/Case，Tank/Case

Measuring Cup Weight（N.W./G.W.）

4.5kg/5.1kg

Tank Weight（N.W./G.W.）

17kg/19.1kg

Total Weight

21.5kg/24.2kg

Carton Size

470×500×850mm
